What is it?

This document presents a brief tutorial for the Grid Analysis and Display System (grads). The following sample session will give you a feeling for how to use the basic capabilities of grads. This sample session takes about 30 minutes to run through.

Download the sample data

You will need to download example.tar.gz in order to go through this tutorial. After downloading the tarball, unpack it with the command:
    tar xvfz example.tar.gz
and you should see the following three files:

model.ctl   (A grads descriptor file)
model.dat   (A grads binary data file)
tutorial    (A text file containing the contents of this tutorial)

This example data set is a a binary data file containing sample model output (model.dat) and data descriptor file (model.ctl), a text file that contains the necessary metadata that grads needs. The data descriptor file describes the structure of the data file, which in the case contains 5 days of global grids that are 72 x 46 elements in size. The text of the sample session below is also included for your convenience.

Sample Session

To start up GrADS, enter:


If the grads executable is not in your current directory, or if it is not in your PATH somewhere, you may need to enter the full pathname, ie:


GrADS will prompt you with a landscape vs. portrait question; just press enter. At this point a graphics output window should open on your console. You may wish to move or resiae this window. Keep in mind that you will be entering GrADS commands from the window where you first started GrADS -- this window will need to be made the 'active' window and you will not want to entirely cover that window with the graphics output window.

In the text window (where you started grads from), you should now see a prompt: ga-> You will enter GrADS commands at this prompt and see the results displayed in the graphics output window.

The first command you will enter is:

open model.ctl

You may want to see what is in this file, so enter:

query file

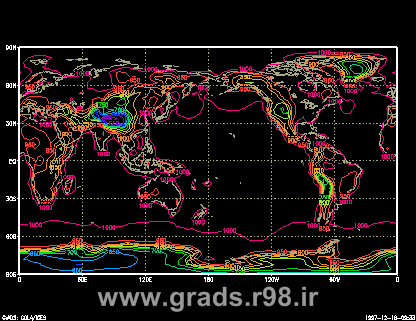

One of the available variable is called ps, for surface pressure. We can display this variable by entering:

d ps

d is short for display. You will note that by default, GrADS will display a lat/lon plot at the first time and at the lowest level in the data set.

Now you will enter commands to alter the dimension environment. The display command (and implicitly, the access, operation, and output of the data) will do things with respect to the current dimension environment. You control the dimension environment with the set command:

    clear           clears the display
    set lon -90     sets longitude to 90 degrees West
    set lat 40      sets latitude to 40 degrees North
    set lev 500     sets level to 500 mb
    set t 1         sets time to first time step
    d hgt           displays the variable called 'hgt'

GrADS will not draw anything to the display window, but instead prints out "Result value = 5447.17" to the command window.

In the above sequence of commands, we have set all four GrADS dimensions to a single value. When we set a dimension to a single value, we say that dimension is "fixed". Since all the dimensions are fixed, when we display a variable we get a single value, in this case the value of  'hgt' at the location 90W, 40N, 500mb, at the 1st time in the data set.

If we now enter:

    set lon -180 0     X is now a varying dimension
    d hgt

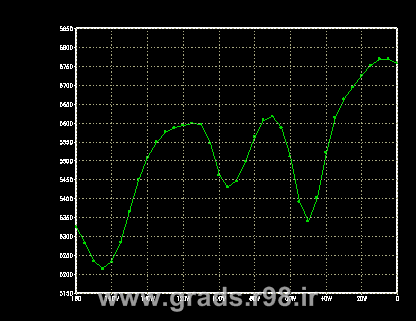

We have set the X dimension, or longitude, to vary. We have done this by entering two values on the set command. We now have one varying dimension (the other dimensions are still fixed), and when we display a variable we get a line graph, in this case a graph of 500mb Heights at 40N.

Now enter:

    set lat 0 90
    d hgt

We now have two varying dimensions, so by default we get a contour plot. If we have 3 varying dimensions:

    set t 1 5
    d hgt

we get an animation sequence, in this case through time. For some modern computers, the display of all 5 time steps may be so fast that the animation may not be evident.

Next enter:

    set lon -90
    set lat -90 90
    set lev 1000 100
    set t 1
    d tair
    d u

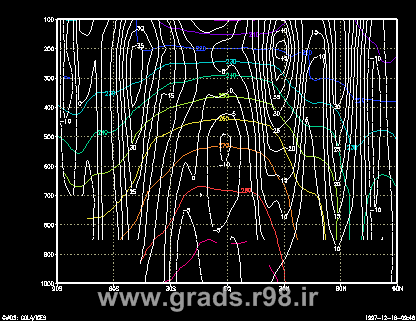

In this case we have set the Y (latitude) and Z (level) dimensions to vary, so we get a vertical cross section. We have also displayed two variables, which simply overlay each other. You may display as many items as you desire overlaid before you enter the clear command.

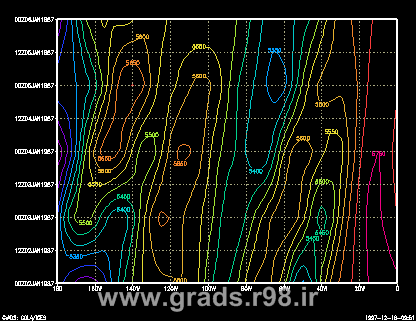

Another example, in this case with X and T varying (Hovmoller plot):

    set lon -180 0
    set lat 40
    set lev 500
    set t 1 5
    d hgt


Now that you know how to select the portion of the data set to view, we will move on to the topic of operations on the data. First, set the dimension environment to an Z, Y varying one:

    set lon -180 0
    set lat 0 90
    set lev 500
    set t 1

Now say that we want to see the temperature in Fahrenheit instead of Kelvin. We can do the conversion by entering:

display (tsfc-273.16)*9/5+32

Any expression may be entered that involves the standard operators of +, -, *, and /, and which involves operands which may be constants, variables, or functions. An example involving functions:

    d sqrt(u*u+v*v)

to calculate the magnitude of the wind. A function is provided to do this calculation directly:

d mag(u,v)

Another built in function is the averaging function:

    d ave(hgt,t=1,t=5)

In this case we calculate the 5 day mean. We can also remove the mean from the current field:

d hgt - ave(hgt,t=1,t=5)

We can also take means over longitude to remove the zonal mean:

    d hgt-ave(hgt,x=1,x=72)
    d hgt

We can also perform time differencing:

    d hgt(t=2) - hgt(t=1)

This computes the change between the two fields over 1 day. We could have also done this calculation using an offset from the current time:

d hgt(t+1) - hgt

The complete specification of a variable name is:

name.file(dim +|-|= value, ...)

If we had two files open, perhaps one with model output, the other with analyses, we could take the difference between the two fields by entering:

display hgt.2 - hgt.1

Another built in function calculates horizontal relative vorticity via finite differencing:

    d hcurl(u,v)

Yet another function takes a mass weighted vertical integral:

    d vint(ps,q,275)

Here we have calculated precipitable water in mm.

Now we will move on to the topic of controlling the graphics output. So far, we have allowed GrADS to chose a default contour interval. We can override this by:

    set cint 30
    d hgt

We can also control the contour color by:


    set ccolor 3
    d hgt

We can select alternate ways of displaying the data:

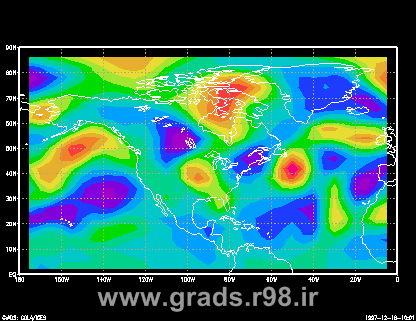

    set gxout shaded
    d hcurl(u,v)

This is not very smooth; we can apply a cubic smoother by entering:

    set csmooth on
    d hcurl(u,v)

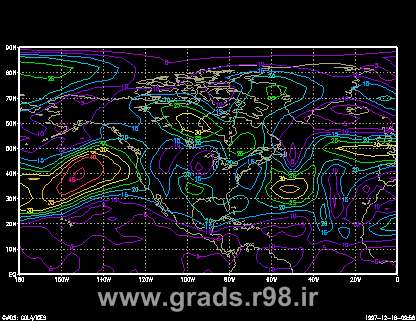

We can overlay different graphics types:

    set gxout contour
    set ccolor 0
    set cint 30
    d hgt

and we can annotate:

draw title 500mb Heights and Vorticity

We can view wind vectors:

    set gxout vector
    d u;v

Here we are displaying two expressions, the first for the U component of the vector; the 2nd the V component of the vector. We can also colorize the vectors by specifying a 3rd field:

d u;v;q

or maybe:

d u;v;hcurl(u,v)

You may display pseudo vectors by displaying any field you want:

    d mag(u,v) ; q*10000

Here the U component is the wind speed; the V component is moisture.

We can also view streamlines (and colorize them):

    set gxout stream
    d u;v;hcurl(u,v)

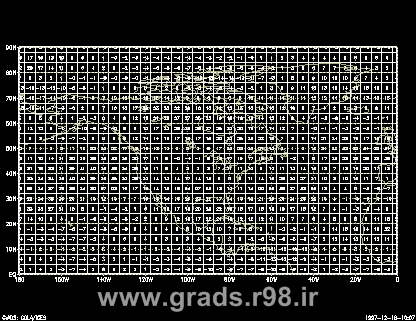

Or we can display actual grid point values:

    set gxout grid
    d u

We may wish to alter the map background:

    set lon -110 -70
    set lat 30 45
    set mpdset mres
    set digsize 0.2
    set dignum 2
    d u

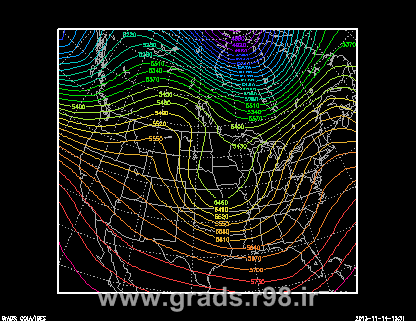

To alter the projection:

    set lon -150 -40
    set lat 15 80
    set mpvals -120 -75 25 65
    set mproj nps
    set gxout contour
    set cint 30
    d hgt

In this case, we have told grads to access and operate on data from longitude 145W to 40W, and latitude 15N to 80N. But we have told it to display a polar stereographic plot that contains the region bounded by 120W to 75W and 25N to 65N. The extra plotting area is clipped by the map projection routine.

This concludes the sample session. At this point, you may wish to examine the data set further, or you may want to go through the GrADS documentation and try out the other options described there.
